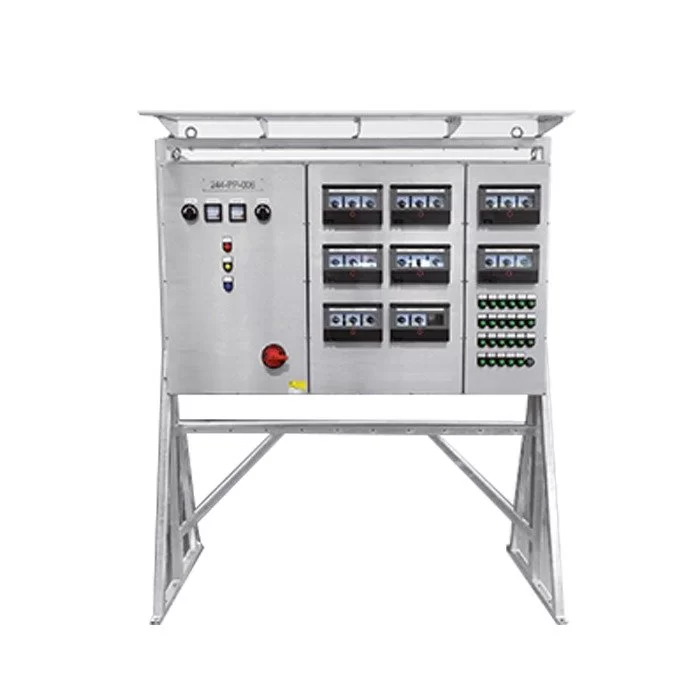

BARTEC – Ex-de Protected Ex-proof Distribution Board
-
Technical Specifications:
-
Zone Classification: Zone 1–21 / Zone 2–22
-
Ex-proof Protection: Ex II 2G Ex de ia/ib m [ia/ib] IIC T5,4 / Ex II 2D Ex td A21 IP 66/65 T 80°C, T 95°C
-
IP Rating: IP65 / IP66
-
Operating Temperature: -20°C ÷ +40°C (extended range -55°C ÷ +55°C)
-
Enclosure Material: Glass-fiber reinforced polyester, Sheet Steel, Stainless Steel
-
ATEX Certificate: DEKRA I3ATEXO2O9
-
Other Certifications: IECEx, CU TR
Dimensions:
-
Type 1: 380 mm × 300 mm, 1 hinged inspection window
-
Type 2: 760 mm × 300 mm, 2 hinged inspection windows
-
Type 3: 760 mm × 600 mm, 3/4 hinged inspection windows
-

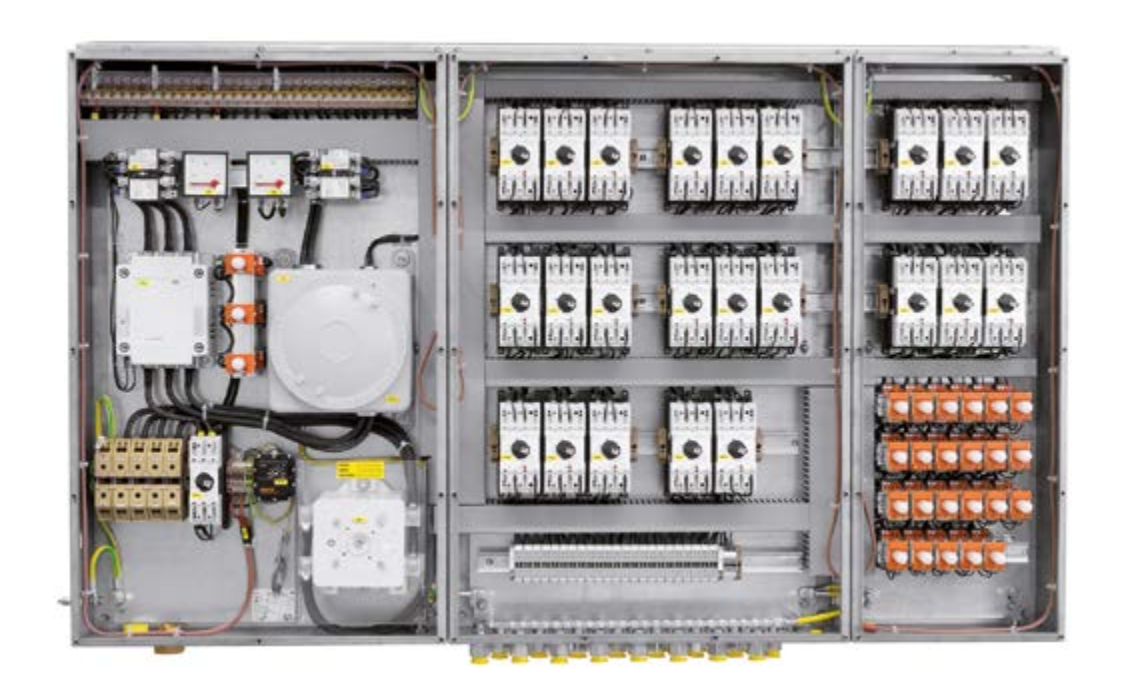

BARTEC offers a complete solution for power distribution in lighting and heat tracing projects. Depending on customer requirements, the safety technology provider supplies a combination of standard and customized enclosure sizes, including BARTEC circuit breakers for circuit protection/power distribution as well as a control station for monitoring and controlling customer systems.
The components can be mounted on a galvanized steel or stainless-steel frame, with an optional roof for sun and rain protection.
Typical Applications:
-
Power supply/distribution for lighting, heating, motors, and connectors
Usage Areas: Zone 1, 2, 21, 22
Versions: ETO, up to 160 A, MCB, RCCB, RCBO
Key Benefits:
-
Quick access through inspection windows reduces downtime and increases cost efficiency
-
High reliability due to the robust design of the stainless-steel enclosure
-
Compact design by combining control and power distribution functions
-
Flexible in terms of size and components used
